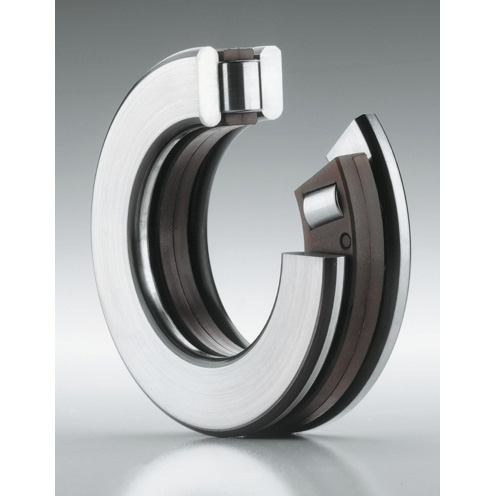

81216-TV Thrust Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 81216-TV

Bore Diameter

 N/A 80 mm

Cage Material

 N/A Plastic

Compatible Washer

 N/A GS81216 WS81216

Dynamic Load Rating

 N/A 45200 lbf

Fillet Radius

 N/A 1 mm

Maximum Speed

 N/A 3000 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 115 mm

Overall Width

 N/A 28 mm

Series

 N/A 812

Static Load Rating

 N/A 142000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 2.38 lb
