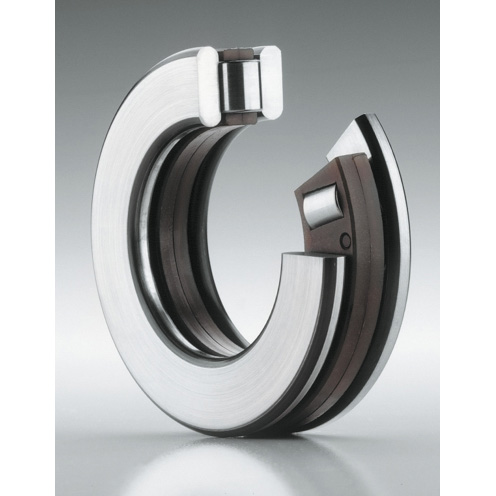

89413-TV Thrust Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 89413-TV

Bore Diameter

 N/A 65 mm

Cage Material

 N/A Plastic

Compatible Washer

 N/A GS89413 WS89413

Dynamic Load Rating

 N/A 100000 lbf

Fillet Radius

 N/A 2 mm

Maximum Speed

 N/A 2800 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 140 mm

Overall Width

 N/A 15 mm

Series

 N/A 894

Static Load Rating

 N/A 315000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 9.29 lb
