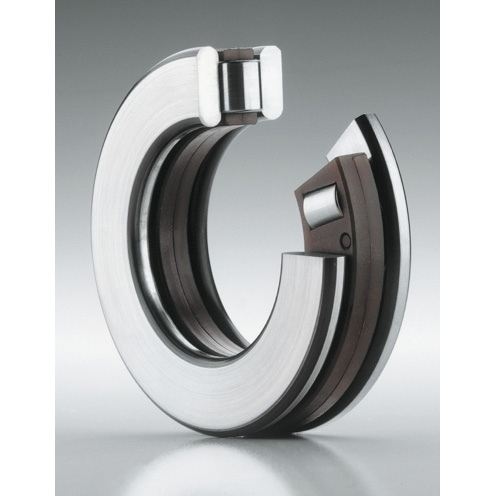

81230-M Thrust Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 81230-M

Bore Diameter

 N/A 150 mm

Cage Material

 N/A Brass

Compatible Washer

 N/A GS81230 WS81230

Dynamic Load Rating

 N/A 133000 lbf

Fillet Radius

 N/A 1.5 mm

Maximum Speed

 N/A 1600 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 215 mm

Overall Width

 N/A 50 mm

Series

 N/A 812

Static Load Rating

 N/A 436000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 16.79 lb
