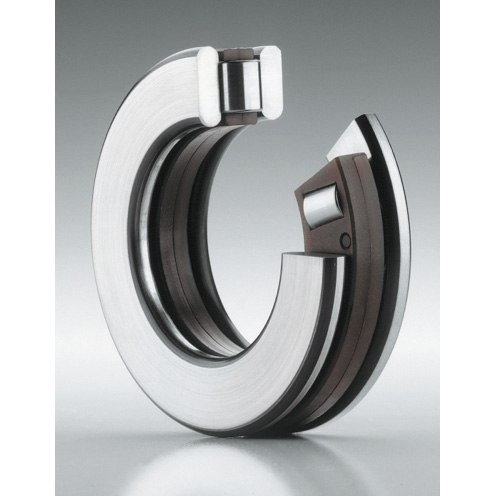

89314-TV Thrust Roller Bearing
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A 89314-TV

Bore Diameter

 N/A 70 mm

Cage Material

 N/A Plastic

Compatible Washer

 N/A GS89314 WS89314

Dynamic Load Rating

 N/A 54000 lbf

Fillet Radius

 N/A 1.1 mm

Maximum Speed

 N/A 3000 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 125 mm

Overall Width

 N/A 34 mm

Series

 N/A 893

Static Load Rating

 N/A 187000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers

Weight

 N/A 4.800 lb
