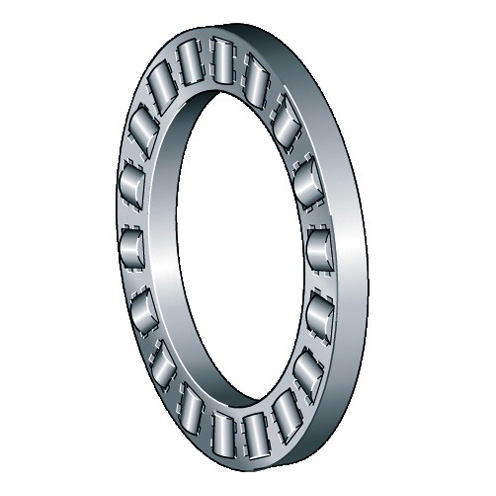

K81112-TV Thrust Roller Cage Assembly
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A K81112-TV

Bore Diameter

 N/A 60 mm

Cage Material

 N/A Plastic

Compatible Washer

 N/A LS6085 WS81112

Dynamic Load Rating

 N/A 23200 lbf

Maximum Speed

 N/A 4000 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 85 mm

Overall Width

 N/A 9/32 in

Series

 N/A K811

Static Load Rating

 N/A 71000 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly

Weight

 N/A 0.210 lb
