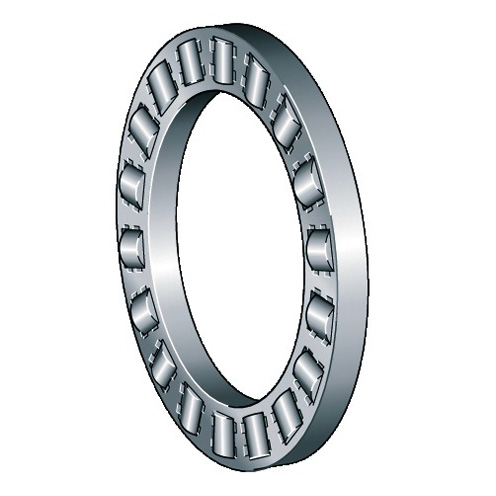

K81107-TV Thrust Roller Cage Assembly
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A K81107-TV

Bore Diameter

 N/A 35 mm

Cage Material

 N/A Plastic

Compatible Washer

 N/A GS81107 LS3552 WS81107

Dynamic Load Rating

 N/A 8800 lbf

Fillet Radius

 N/A 0.6 mm

Maximum Speed

 N/A 6500 rpm

Operating Temperature Range

 N/A -20 to 120 ºC

Outside Diameter

 N/A 52 mm

Overall Width

 N/A 12 mm

Series

 N/A 811

Static Load Rating

 N/A 22700 lbf

Thrust Bearing Type

 N/A Roller and Cage Assembly with Washers
