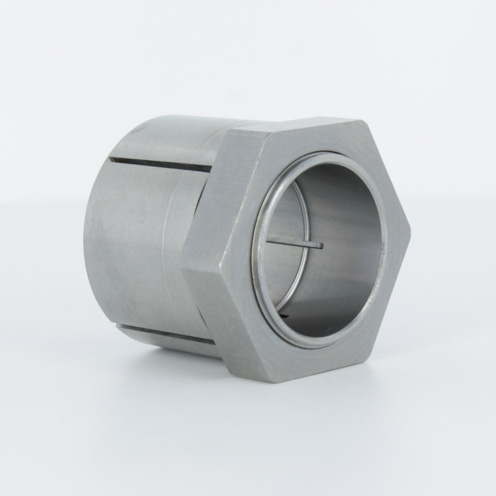

6410138 1.3750 Trantorque OE
Unit of Measure

Specifications

Supplier Name

 N/A Fenner Drives

Manufacturer Part Number

 N/A 6410138

Component Bore Diameter

 N/A 10.2362 in

Finish/Coating

 N/A Uncoated

Flange Type

 N/A No Flange

Hub Contact Pressure

 N/A +13259 psi

Inside Diameter

 N/A 1.3750 in

Keyless Bushing Type

 N/A Collar Nut Clamping

Length Through Bore

 N/A 1.6875 in

Material

 N/A Steel

Maximum Transmitted Thrust

 N/A 8463 lb

Maximum Transmitted Torque

 N/A 485 ft·lb

Mountable Length

 N/A 1-3/16 in

Mounting Type

 N/A Internal

Number of Tapers

 N/A 1

Outside Diameter

 N/A 1.8750 in

Overall Length

 N/A 1-11/16 in

Series

 N/A Trantorque OE

Shaft Contact Pressure

 N/A +18080.45 psi
