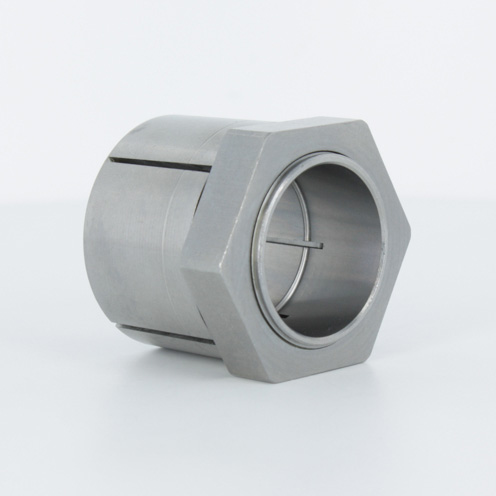

TTQM2035 Keyless Bushing
Unit of Measure

Specifications

Supplier Name

 N/A Fenner Drives

Manufacturer Part Number

 N/A TTQM2035

Component Bore Diameter

 N/A 35 mm

Finish/Coating

 N/A Uncoated

Flange Type

 N/A No Flange

Hub Contact Pressure

 N/A +138 N/mm²

Inside Diameter

 N/A 20 mm

Keyless Bushing Type

 N/A Collar Nut Clamping

Length Through Bore

 N/A 32 mm

Material

 N/A Steel

Maximum Transmitted Thrust

 N/A 30 kN

Maximum Transmitted Torque

 N/A 303 N·m

Mountable Length

 N/A 24 mm

Mounting Type

 N/A Internal

Number of Tapers

 N/A 1

Outside Diameter

 N/A 35 mm

Overall Length

 N/A 32 mm

Series

 N/A Trantorque OE

Shaft Contact Pressure

 N/A +241.5 N/mm²
