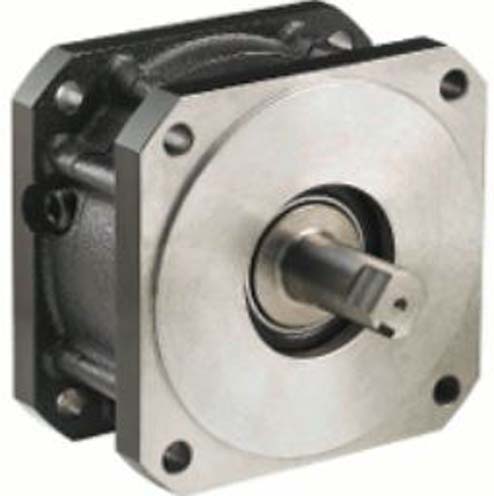

Supplier Name |
N/A Nexen |
Manufacturer Part Number |
N/A 965104 |
Air Chamber Volume |
N/A 48.834 cm³ |
Approximate Engagement Response Time |
N/A 85 ms |
Approximate Release Response Time |
N/A 145 ms |
Backlash |
N/A 0.00 º |
Bore Type |
N/A Straight |
Brake Series |
N/A SBP |
Coupling Type |
N/A Clamp Collar |
Engagement |
N/A Spring Engaged |
Release |
N/A Air Release |
Finish |
N/A Black Acrylic Paint |
Input Bolt Circle |
N/A 215 mm |
Input Bore Diameter |
N/A 38 mm |
Input Pilot Outside Diameter |
N/A 180 mm |
UPC Code |
N/A 662284331913 |
Maximum Speed |
N/A 5000 rpm |
Maximum Pressure |
N/A 6.9 bar |
Minimum Release Pressure |
N/A 4.4 bar |
Minimum Static Brake Torque |
N/A 100 N·m |
Open or Enclosed Design |
N/A Enclosed |
Output Bolt Circle |
N/A 215 mm |
Output Pilot Outside Diameter |
N/A 180 mm |
Output Shaft Diameter |
N/A 38 mm |
Output Shaft Length |
N/A 60 mm |
Overall Length |
N/A 102.3 mm |
Port Size |
N/A 1/8 in |
Port Type |
N/A National Pipe Thread (NPT) |
Rating |
N/A European Conformity (CE) Ingress Protection (IP67) Restriction of Hazardous Substances (RoHS) |
Shaft Inertia |
N/A 0.00362 kg/m² |
Temperature Range |
N/A 32 to 150 ºF |
Torsional Stiffness |
N/A 114000 N·m/rad |
Width |
N/A 214.0 mm |
