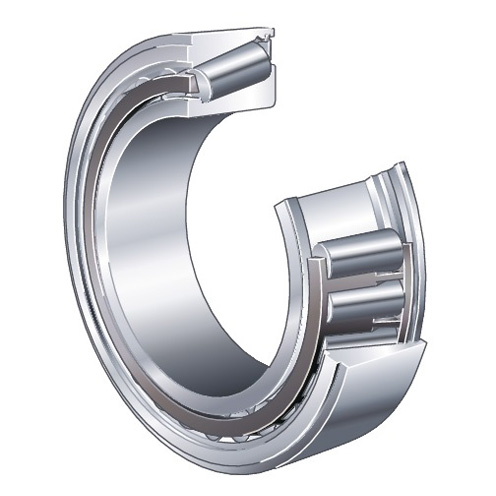

JK0S040 Inch Dimension Tapered Roller
Unit of Measure

Specifications

Supplier Name

 N/A FAG (Schaeffler)

Manufacturer Part Number

 N/A JK0S040

Assembly Type

 N/A Cone and Cup

Bore Diameter

 N/A 40 mm

Cage Material

 N/A Plastic

Closure Type

 N/A Single Sealed

Cone Width

 N/A 21 mm

Cup Width

 N/A 20.5 mm

Dynamic Load Rating

 N/A 53000 N

Finish/Coating

 N/A Uncoated

Flange Type

 N/A Non-Flanged Cup

Maximum Speed

 N/A 4500 rpm

Operating Temperature Range

 N/A -30 to 110 ºC

Outside Diameter

 N/A 68 mm

Series

 N/A JK0S

Static Load Rating

 N/A 71000 N

Weight

 N/A 0.64 lb
