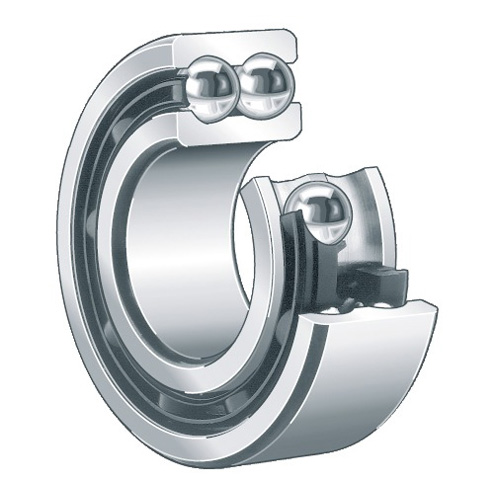

Item # 02953074, INA (Schaeffler) 3800 Series 12 Millimeter (mm) Bore Diameter Double-Row Angular Contact Bearing On Motion Industries, Inc.

Unit of Measure

Supplier Name	N/A INA (Schaeffler)
Manufacturer Part Number	N/A 3801-B-2RSR-TVH
Bore Diameter	N/A 12 mm
Cage Material	N/A Steel
Closure Type	N/A Double Sealed
Contact Angle	N/A 25 º
Fillet Radius	N/A 0.3 mm
Finish/Coating	N/A Uncoated
Internal Clearance	N/A C0
Maximum Speed	N/A 15000 rpm
Number of Rows	N/A Double-Row
Operating Temperature [Max]	N/A 110 ºC
Outer Ring Width	N/A 7 mm
Outside Diameter	N/A 21 mm
Overall Width	N/A 7 mm
Precision Rating	N/A Not Rated
Radial Dynamic Load Capacity	N/A 2190 N
Radial Static Load Capacity	N/A 1550 N
Fill Slot	N/A Non-Fill Slot
Series	N/A 3800
Weight	N/A 0.02 lb
