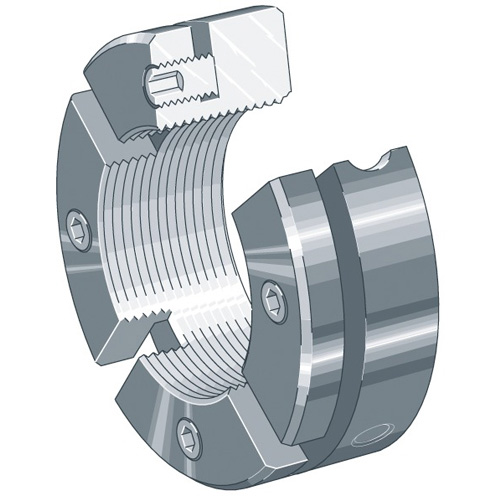

AM20 Precision Lock Nut
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A AM20

Adapter Sleeve Part Number

 N/A AMS20

Face Diameter

 N/A 31 mm

Includes

 N/A Adapter

Locknut Type

 N/A Precision

Outside Diameter

 N/A 38 mm

Overall Nut Width

 N/A 18 mm

Series

 N/A AM

Slot Depth

 N/A 6 mm

Slot Width

 N/A 4 mm

Thread Size

 N/A M20 x 1

Weight

 N/A 0.250 lb
