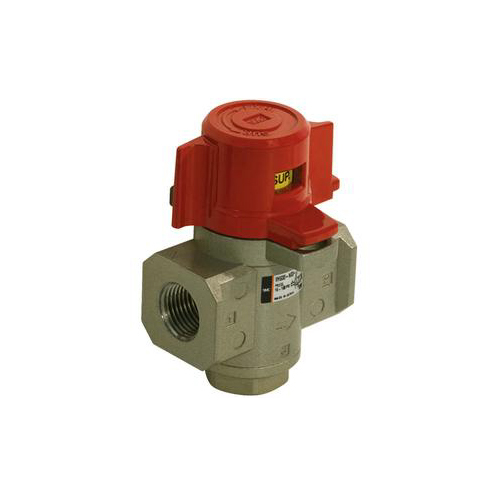

VHS30-F03 Lock-Out Valve 3/8" G Ports
Unit of Measure

Specifications

Supplier Name

 N/A SMC®

Manufacturer Part Number

 N/A VHS30-F03

Flow Coefficient (Cv)/Flow Factor (Kv)

 N/A 1.57 (In to Out) 1.68 (In to Out)

Knob Color

 N/A Red (Handle)

Operating Pressure Range

 N/A 0.05 to 0.7 MPa

Operating Temperature Range

 N/A -5 to 60 ºC

Overall Height

 N/A 53 mm

Overall Length

 N/A 78 mm

Overall Width

 N/A 55 mm

Port Gender

 N/A Female

Port Size

 N/A 3/8 in

Port Thread Standard

 N/A British Standard Pipe Parallel (BSPP)

Proof Pressure

 N/A 1.5 MPa

Standards Met

 N/A Japanese Industrial Standards (JIS)

Weight

 N/A 0.57 lb

General Information

General Information

 N/A Detent
