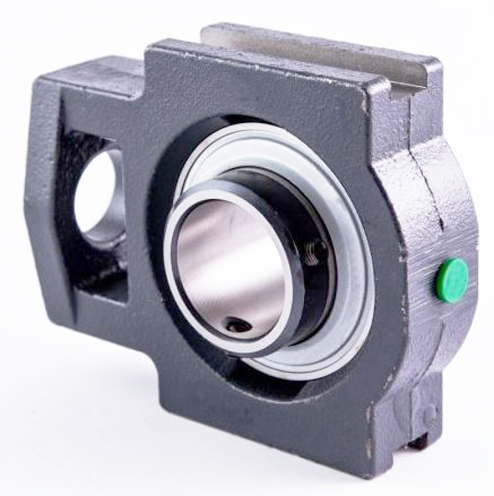

RTUEY65-214-XL Take-Up Unit
Unit of Measure

Specifications

Supplier Name

 N/A INA (Schaeffler)

Manufacturer Part Number

 N/A RTUEY65-214-XL

Bore Diameter

 N/A 65 mm

Duty Type

 N/A Normal Duty

Dynamic Load Rating

 N/A 66000 N

Expansion Type

 N/A Non-Expansion Bearing (Fixed)

Housing Material

 N/A Cast Iron

Housing Width

 N/A 50 mm

Locking Device

 N/A Set Screw

Lubrication Type

 N/A Lubrication Fitting

UPC Code

 N/A 4012802824049

Overall Height

 N/A 166 mm

Overall Length

 N/A 214 mm

Replacement Bearing

 N/A GYE65-214-XL-KRRB

Seal Type

 N/A R-Seal

Series

 N/A RTUEY

Slot Spacing

 N/A 151 mm

Slot Width

 N/A 25 mm

Static Load Rating

 N/A 44000 N

Unit Type

 N/A Side Mount

Weight

 N/A 16.14 lb
