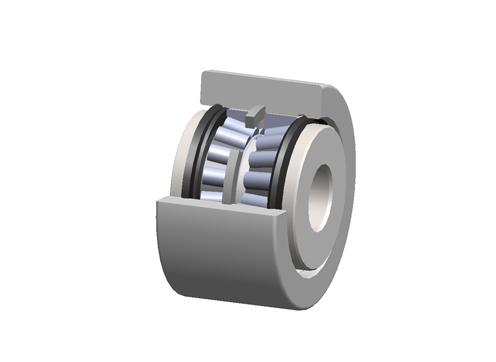

  • PCI Procal Inc. PTRY Series 6.0000 Inch (in) Roller Diameter Flat Yoke Roller (00088715)
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

Item Name

Bore Diameter

Radial Dynamic Load Capacity

Radial Static Load Capacity

Roller Diameter

Roller Width

N/A PCI Procal Inc. PTRY Series 4.0000 Inch (in) Roller Diameter Flat Yoke Roller N/A 1.2500 in N/A 17600 lb N/A 27200 lb N/A 4.0000 in N/A 2.2500 in
N/A PCI Procal Inc. PTRY Series 6.0000 Inch (in) Roller Diameter Flat Yoke Roller N/A 2.2500 in N/A 35830 lb N/A 56200 lb N/A 6.0000 in N/A 3.25 in
N/A PCI Procal Inc. PTRY Series 2.2500 Inch (in) Roller Diameter Flat Yoke Roller N/A 0.6250 in N/A 3400 lb N/A 2240 lb N/A 2.2500 in N/A 1.2500 in
N/A PCI Procal Inc. PTRY Series 3.5000 Inch (in) Roller Diameter Flat Yoke Roller N/A 1.1250 in N/A 17600 lb N/A 27200 lb N/A 3.5000 in N/A 2.0000 in
N/A PCI Procal Inc. PTRY Series 5.0000 Inch (in) Roller Diameter Flat Yoke Roller N/A 1.7500 in N/A 35870 lb N/A 58400 lb N/A 5.0000 in N/A 2.7500 in
N/A PCI Procal Inc. PDCY Series 3.0000 Inch (in) Roller Diameter Flat Yoke Roller N/A 1.0000 in N/A 27600 lb N/A 38000 lb N/A 3.0000 in N/A 1.7500 in
N/A PCI Procal Inc. PTRY Series 7.0000 Inch (in) Roller Diameter Flat Yoke Roller N/A 2.7500 in N/A 42400 lb N/A 79800 lb N/A 7.0000 in N/A 3.75 in
N/A PCI Procal Inc. PTRY Series 8.0000 Inch (in) Roller Diameter Flat Yoke Roller N/A 3.2500 in N/A 83700 lb N/A 159800 lb N/A 8.0000 in N/A 4.5000 in
N/A PCI Procal Inc. PTRY Series 10.0000 Inch (in) Roller Diameter Flat Yoke Roller N/A 4.2500 in N/A 137300 lb N/A 276000 lb N/A 10.0000 in N/A 5.2500 in
N/A PCI Procal Inc. PTRY Series 9.0000 Inch (in) Roller Diameter Flat Yoke Roller N/A 3.7500 in N/A 134600 lb N/A 250000 lb N/A 9.0000 in N/A 4.7500 in
N/A PCI Procal Inc. PTRY Series 2.5000 Inch (in) Roller Diameter Flat Yoke Roller N/A 0.7500 in N/A 5560 lb N/A 3500 lb N/A 2.5000 in N/A 1.5000 in
N/A PCI Procal Inc. PTRY Series 3.0000 Inch (in) Roller Diameter Flat Yoke Roller N/A 1.0000 in N/A 14300 lb N/A 20000 lb N/A 3.0000 in N/A 1.7500 in
N/A PCI Procal Inc. PTRY Series 2.7500 Inch (in) Roller Diameter Flat Yoke Roller N/A 0.7500 in N/A 5560 lb N/A 3500 lb N/A 2.7500 in N/A 1.5000 in
