Item # |
Item Name |
Base to Bore Centerline |
Base Width |
Bolt Center-to-Center Length |
Bolt Size |
|---|---|---|---|---|---|

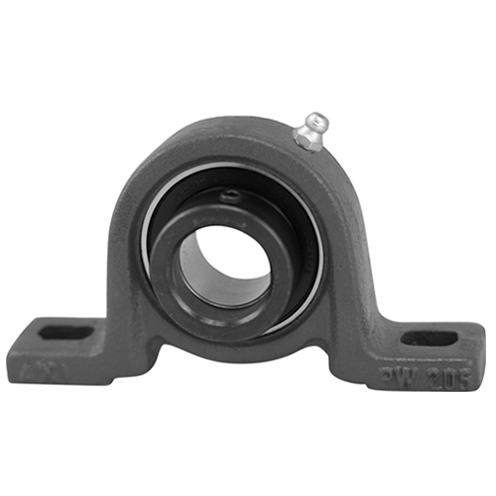

| 03773967 | N/A AMI 12 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.1890 in | Base Width N/A 25 mm | Bolt Center-to-Center Length N/A 81 to 94 mm | Bolt Size N/A M10 |
| 03773968 | N/A AMI 15 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.1890 in | Base Width N/A 25 mm | Bolt Center-to-Center Length N/A 81 to 94 mm | Bolt Size N/A M10 |
| 03773969 | N/A AMI 17 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.1890 in | Base Width N/A 25 mm | Bolt Center-to-Center Length N/A 81 to 94 mm | Bolt Size N/A M10 |
| 03773970 | N/A AMI 20 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.3110 in | Base Width N/A 27 mm | Bolt Center-to-Center Length N/A 91 to 103 mm | Bolt Size N/A M10 |
| 02751593 | N/A AMI 25 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.4370 in | Base Width N/A 29 mm | Bolt Center-to-Center Length N/A 94 to 106 mm | Bolt Size N/A M10 |
| 03773971 | N/A AMI 30 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.6890 in | Base Width N/A 33 mm | Bolt Center-to-Center Length N/A 112 to 128 mm | Bolt Size N/A M12 |
| 03072913 | N/A AMI 35 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.8740 in | Base Width N/A 35 mm | Bolt Center-to-Center Length N/A 119 to 135 mm | Bolt Size N/A M12 |
| 04594325 | N/A AMI 20 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.2520 in | Base Width N/A 32 mm | Bolt Center-to-Center Length N/A 89 to 108 mm | Bolt Size N/A M10 |
| 05420282 | N/A AMI 25 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.3110 in | Base Width N/A 38 mm | Bolt Center-to-Center Length N/A 95 to 114 mm | Bolt Size N/A M10 |
| 04594328 | N/A AMI 30 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.5630 in | Base Width N/A 41 mm | Bolt Center-to-Center Length N/A 114 to 133 mm | Bolt Size N/A M12 |
| 04594331 | N/A AMI 40 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.9370 in | Base Width N/A 51 mm | Bolt Center-to-Center Length N/A 133 to 152 mm | Bolt Size N/A M12 |
| 04594335 | N/A AMI 20 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.3110 in | Base Width N/A 38 mm | Bolt Center-to-Center Length N/A 86 to 105 mm | Bolt Size N/A M10 |
| 03773978 | N/A AMI 25 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.4370 in | Base Width N/A 38 mm | Bolt Center-to-Center Length N/A 95 to 114 mm | Bolt Size N/A M10 |
| 03229767 | N/A AMI 30 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.6890 in | Base Width N/A 48 mm | Bolt Center-to-Center Length N/A 113 to 129 mm | Bolt Size N/A M14 |
| 03773987 | N/A AMI 40 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.9370 in | Base Width N/A 54 mm | Bolt Center-to-Center Length N/A 124 to 149 mm | Bolt Size N/A M14 |
| 03769983 | N/A AMI 12 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 0.8740 in | Base Width N/A 25.4 mm | Bolt Center-to-Center Length N/A 64 to 73 mm | Bolt Size N/A M8 |
| 03769984 | N/A AMI 15 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 0.8740 in | Base Width N/A 25.4 mm | Bolt Center-to-Center Length N/A 64 to 73 mm | Bolt Size N/A M8 |
| 01451833 | N/A AMI 17 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 0.8740 in | Base Width N/A 25.4 mm | Bolt Center-to-Center Length N/A 64 to 73 mm | Bolt Size N/A M8 |
| 03769985 | N/A AMI 20 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.0000 in | Base Width N/A 25.4 mm | Bolt Center-to-Center Length N/A 73 to 79 mm | Bolt Size N/A M10 |
| 03748384 | N/A AMI 25 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.1260 in | Base Width N/A 28.6 mm | Bolt Center-to-Center Length N/A 81 to 91 mm | Bolt Size N/A M10 |
| 03497567 | N/A AMI 30 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.3110 in | Base Width N/A 31.8 mm | Bolt Center-to-Center Length N/A 91 to 100 mm | Bolt Size N/A M10 |
| 03769987 | N/A AMI 35 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.5630 in | Base Width N/A 33.3 mm | Bolt Center-to-Center Length N/A 102 to 114 mm | Bolt Size N/A M12 |
| 03769737 | N/A AMI 12 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.0000 in | Base Width N/A 25.4 mm | Bolt Center-to-Center Length N/A 73 to 79 mm | Bolt Size N/A M10 |
| 03769738 | N/A AMI 15 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.0000 in | Base Width N/A 25.4 mm | Bolt Center-to-Center Length N/A 73 to 79 mm | Bolt Size N/A M10 |
| 03769739 | N/A AMI 17 Millimeter (mm) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 1.0000 in | Base Width N/A 25.4 mm | Bolt Center-to-Center Length N/A 73 to 79 mm | Bolt Size N/A M10 |
