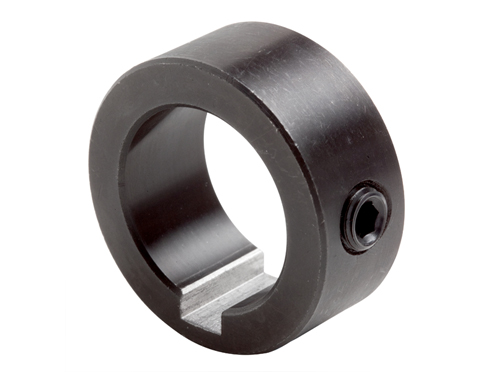

  • Climax Metal C-KW Series 1.0000 Inch (in) Inside Diameter Steel Set Screw Collar with Keyway (04004185)
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

Item Name

Finish

Inside Diameter

Outside Diameter

Screw Thread Size

N/A Climax Metal C-KW Series 1.0000 Inch (in) Inside Diameter Steel Set Screw Collar with Keyway N/A Black Oxide N/A 1.0000 in N/A 1.50 in N/A 5/16-24 x 1/4 in
N/A Climax Metal C-KW Series 1.2500 Inch (in) Inside Diameter Steel Set Screw Collar with Keyway N/A Black Oxide N/A 1.2500 in N/A 2.0000 in N/A 3/8-16 x 1/4 in
N/A Climax Metal C-KW Series 1.5000 Inch (in) Inside Diameter Steel Set Screw Collar with Keyway N/A Black Oxide N/A 1.5000 in N/A 2.2500 in N/A 3/8-16 x 3/8 in
N/A Climax Metal C-KW Series 2.0000 Inch (in) Inside Diameter Steel Set Screw Collar with Keyway N/A Black Oxide N/A 2.0000 in N/A 3.00 in N/A 1/2-13 x 1/2 in
N/A Climax Metal C-KW Series 1.0000 Inch (in) Inside Diameter Stainless Steel Set Screw Collar with Keyway N/A Stainless Steel N/A 1.0000 in N/A 1.50 in N/A 5/16-24 x 1/4 in
N/A Climax Metal C-KW Series 1.5000 Inch (in) Inside Diameter Stainless Steel Set Screw Collar with Keyway N/A Stainless Steel N/A 1.5000 in N/A 2.2500 in N/A 3/8-16 x 3/8 in
N/A Climax Metal C-KW Series 2.0000 Inch (in) Inside Diameter Stainless Steel Set Screw Collar with Keyway N/A Stainless Steel N/A 2.0000 in N/A 3.00 in N/A 1/2-13 x 1/2 in
N/A Climax Metal C-KW Series 1.2500 Inch (in) Inside Diameter Stainless Steel Set Screw Collar with Keyway N/A Stainless Steel N/A 1.2500 in N/A 2.0000 in N/A 3/8-16 x 1/4 in
N/A Climax Metal C-KW Series 1.0000 Inch (in) Inside Diameter Aluminum Set Screw Collar with Keyway N/A Plain N/A 1.0000 in N/A 1.50 in N/A 5/16-24 x 1/4 in
N/A Climax Metal C-KW Series 1.2500 Inch (in) Inside Diameter Aluminum Set Screw Collar with Keyway N/A Plain N/A 1.2500 in N/A 2.0000 in N/A 3/8-16 x 1/4 in
N/A Climax Metal C-KW Series 1.5000 Inch (in) Inside Diameter Aluminum Set Screw Collar with Keyway N/A Plain N/A 1.5000 in N/A 2.2500 in N/A 3/8-16 x 3/8 in
N/A Climax Metal C-KW Series 2.0000 Inch (in) Inside Diameter Aluminum Set Screw Collar with Keyway N/A Plain N/A 2.0000 in N/A 3.00 in N/A 1/2-13 x 1/2 in
