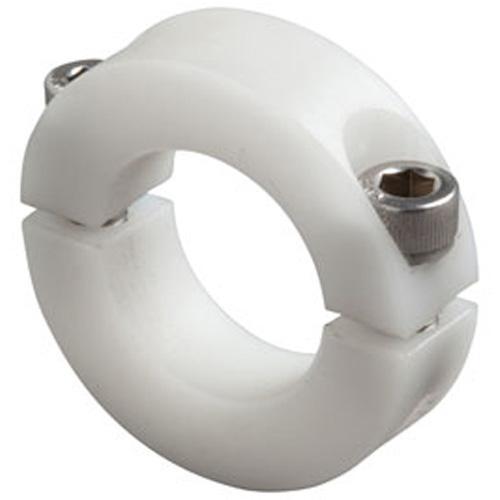

  • Climax Metal N2C Series Nylon Two-Piece Clamping Collars
Effective on hard and soft shafts - Design fully engages the shaft without marring - Nylon will not rust or corrode - Includes stainless steel set screws - Nylon is lightweight.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

Item Name

Inside Diameter

Outside Diameter

Screw Thread Size

Width

N/A Climax Metal N2C Series 1.3125 Inch (in) Outside Diameter Nylon Two-Piece Clamping Collar N/A 0.6250 in N/A 1.3125 in N/A 10-32 x 1/2 in N/A 0.4375 in
N/A Climax Metal N2C Series 1.1250 Inch (in) Outside Diameter Nylon Two-Piece Clamping Collar N/A 0.5000 in N/A 1.1250 in N/A 8-32 x 1/2 in N/A 0.4063 in
N/A Climax Metal N2C Series 0.8750 Inch (in) Outside Diameter Nylon Two-Piece Clamping Collar N/A 0.3750 in N/A 0.8750 in N/A 6-32 x 3/8 in N/A 0.6875 in
N/A Climax Metal N2C Series 1.7500 Inch (in) Outside Diameter Nylon Two-Piece Clamping Collar N/A 1.0000 in N/A 1.75 in N/A 1/4-28 x 5/8 in N/A 0.5000 in
N/A Climax Metal N2C Series 1.5000 Inch (in) Outside Diameter Nylon Two-Piece Clamping Collar N/A 0.7500 in N/A 1.50 in N/A 1/4-28 x 5/8 in N/A 0.5000 in
N/A Climax Metal N2C Series 0.6250 Inch (in) Outside Diameter Nylon Two-Piece Clamping Collar N/A 0.2500 in N/A 0.6250 in N/A 4-40 x 3/8 in N/A 0.3125 in
