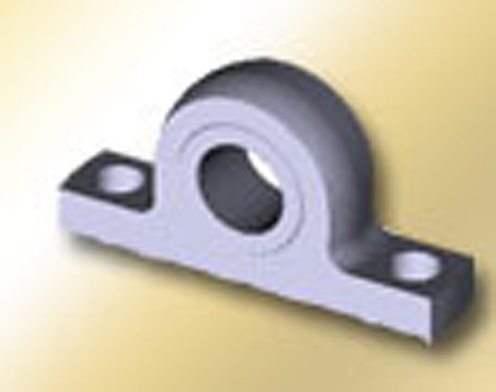

  • Bunting Lube-Align® LA Series Standard Mounting Pillow Block Units
1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

Item Name

Bore Diameter

Overall Height

Overall Length

Overall Width

N/A Bunting Lube-Align® LA Series 0.502 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 0.5020 in N/A 1.1250 in N/A 2.2500 in N/A 0.5000 in
N/A Bunting Lube-Align® LA Series 0.377 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 0.3770 in N/A 1.1250 in N/A 2.2500 in N/A 0.5000 in
N/A Bunting Lube-Align® LA Series 0.252 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 0.2520 in N/A 1.1250 in N/A 2.2500 in N/A 0.5000 in
N/A Bunting Lube-Align® LA Series 0.3135 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 0.3135 in N/A 0.8750 in N/A 1.8750 in N/A 0.4375 in
N/A Bunting Lube-Align® LA Series 0.5020 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 0.5020 in N/A 1.5625 in N/A 3.2500 in N/A 0.8750 in
N/A Bunting Lube-Align® LA Series 0.5020 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 0.5020 in N/A 1.9375 in N/A 4.0000 in N/A 1.0000 in
N/A Bunting Lube-Align® LA Series 0.6275 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 0.6275 in N/A 1.5625 in N/A 3.2500 in N/A 0.8750 in
N/A Bunting Lube-Align® LA Series 0.6275 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 0.6275 in N/A 1.9375 in N/A 4.0000 in N/A 1.0000 in
N/A Bunting Lube-Align® LA Series 0.752 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 0.7520 in N/A 1.5625 in N/A 3.2500 in N/A 0.8750 in
N/A Bunting Lube-Align® LA Series 0.752 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 0.7520 in N/A 1.9375 in N/A 4.0000 in N/A 1.0000 in
N/A Bunting Lube-Align® LA Series 0.877 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 0.8770 in N/A 1.9375 in N/A 4.0000 in N/A 1.0000 in
N/A Bunting Lube-Align® LA Series 1.002 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 1.0020 in N/A 2.5625 in N/A 5.0000 in N/A 1.5000 in
N/A Bunting Lube-Align® LA Series 1.253 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 1.2530 in N/A 2.5625 in N/A 5.0000 in N/A 1.5000 in
N/A Bunting Lube-Align® LA Series 1.503 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 1.5030 in N/A 3.0000 in N/A 5.5000 in N/A 1.5000 in
N/A Bunting Lube-Align® LA Series 1.753 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 1.7530 in N/A 3.8125 in N/A 6.5000 in N/A 2.0000 in
N/A Bunting Lube-Align® LA Series 2.004 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 2.0040 in N/A 3.8125 in N/A 6.5000 in N/A 2.0000 in
N/A Bunting Lube-Align® LA Series 1.002 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 1.0020 in N/A 1.9375 in N/A 4.0000 in N/A 1.0000 in
N/A Bunting Lube-Align® LA Series 0.252 Inch (in) Bore Diameter Standard Mounting Pillow Block Unit N/A 0.2520 in N/A 1.1250 in N/A 2.2500 in N/A 0.5938 in
