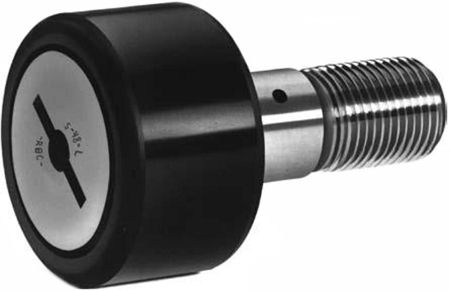

  • RBC® S Series 2.7500 Inch (in) Roller Diameter Slotted Head Flat Cam Follower (00096204)
1 - 17 of 17 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

Item Name

Manufacturer Part Number

Axial Dynamic Load Capacity

Axial Static Load Capacity

Maximum Speed

N/A RBC® CS Series 1.8750 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS60L N/A 6400 lbf N/A 12400 lbf N/A 2600 rpm
N/A RBC® CS Series 2.2500 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS72L N/A 9600 lbf N/A 16700 lbf N/A 2200 rpm
N/A RBC® CS Series 0.7500 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS24L N/A 1800 lbf N/A 3100 lbf N/A 5000 rpm
N/A RBC® CS Series 0.8750 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS28L N/A 1800 lbf N/A 3100 lbf N/A 5000 rpm
N/A RBC® CS Series 1.0000 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS32L N/A 2300 lbf N/A 4800 lbf N/A 4500 rpm
N/A RBC® CS Series 1.2500 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS40L N/A 4200 lbf N/A 6600 lbf N/A 3900 rpm
N/A RBC® CS Series 1.3750 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS44L N/A 4200 lbf N/A 6600 lbf N/A 3900 rpm
N/A RBC® CS Series 1.5000 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS48L N/A 5000 lbf N/A 8800 lbf N/A 3100 rpm
N/A RBC® CS Series 1.6250 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS52L N/A 5000 lbf N/A 8800 lbf N/A 3100 rpm
N/A RBC® CS Series 1.7500 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS56L N/A 6400 lbf N/A 12400 lbf N/A 2600 rpm
N/A RBC® CS Series 2.0000 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS64L N/A 9600 lbf N/A 16700 lbf N/A 2200 rpm
N/A RBC® CS Series 2.5000 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS80L N/A 12800 lbf N/A 25400 lbf N/A 2000 rpm
N/A RBC® CS Series 3.0000 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS96L N/A 17000 lbf N/A 40000 lbf N/A 1600 rpm
N/A RBC® CS Series 3.2500 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS104L N/A 17000 lbf N/A 40000 lbf N/A 1600 rpm
N/A RBC® CS Series 3.5000 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS112L N/A 24300 lbf N/A 54600 lbf N/A 1400 rpm
N/A RBC® CS Series 4.0000 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS128L N/A 30000 lbf N/A 73100 lbf N/A 1300 rpm
N/A RBC® CS Series 1.1250 Inch (in) Roller Diameter Slotted Head Crowned Cam Follower N/A CS36L N/A 2300 lbf N/A 4800 lbf N/A 4500 rpm
