Item # |
Item Name |
Base to Bore Centerline |
Base Width |
Bolt Center-to-Center Length |
Bolt Size |
|---|---|---|---|---|---|

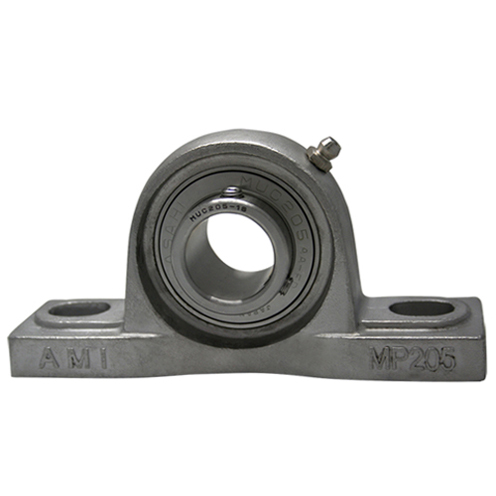

| 03773531 | N/A AMI 2.4375 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 2.7500 in | Base Width N/A 2-3/4 in | Bolt Center-to-Center Length N/A 6.8750 to 7.6250 in | Bolt Size N/A 5/8 |
| 03772555 | N/A AMI 2.5000 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.0000 in | Base Width N/A 2-3/4 in | Bolt Center-to-Center Length N/A 7.5938 to 8.4063 in | Bolt Size N/A 3/4 |
| 03771072 | N/A AMI 2.4375 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.3125 in | Base Width N/A 3-5/16 in | Bolt Center-to-Center Length N/A 9.3580 to 10.1420 in | Bolt Size N/A 3/4 |
| 03773446 | N/A AMI 2.6875 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.8125 in | Base Width N/A 3-25/32 in | Bolt Center-to-Center Length N/A 10.7860 to 11.7140 in | Bolt Size N/A 7/8 |
| 03771073 | N/A AMI 2.7500 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.8125 in | Base Width N/A 3-25/32 in | Bolt Center-to-Center Length N/A 10.7860 to 11.7140 in | Bolt Size N/A 7/8 |
| 03773447 | N/A AMI 2.9375 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 4.1250 in | Base Width N/A 4-1/16 in | Bolt Center-to-Center Length N/A 11.5360 to 12.4640 in | Bolt Size N/A 7/8 |
| 03766314 | N/A AMI 3.0000 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 4.1250 in | Base Width N/A 4-1/16 in | Bolt Center-to-Center Length N/A 11.5360 to 12.4640 in | Bolt Size N/A 7/8 |
| 03771014 | N/A AMI 2.3750 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.0000 in | Base Width N/A 3-1/4 in | Bolt Center-to-Center Length N/A 7.5625 to 8.4375 in | Bolt Size N/A 3/4 |
| 03773658 | N/A AMI 2.4375 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.0000 in | Base Width N/A 3-1/4 in | Bolt Center-to-Center Length N/A 7.5625 to 8.4375 in | Bolt Size N/A 3/4 |
| 03771015 | N/A AMI 2.5000 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.0000 in | Base Width N/A 3-1/4 in | Bolt Center-to-Center Length N/A 7.5625 to 8.4375 in | Bolt Size N/A 3/4 |
| 03767870 | N/A AMI 2.6875 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.5000 in | Base Width N/A 3-1/2 in | Bolt Center-to-Center Length N/A 8.6563 to 9.3438 in | Bolt Size N/A 7/8 |
| 03771016 | N/A AMI 2.7500 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.5000 in | Base Width N/A 3-1/2 in | Bolt Center-to-Center Length N/A 8.6563 to 9.3438 in | Bolt Size N/A 7/8 |
| 03767871 | N/A AMI 2.9375 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.5000 in | Base Width N/A 3-1/2 in | Bolt Center-to-Center Length N/A 8.6563 to 9.3438 in | Bolt Size N/A 7/8 |
| 03769273 | N/A AMI 3.0000 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.5000 in | Base Width N/A 3-1/2 in | Bolt Center-to-Center Length N/A 8.6563 to 9.3438 in | Bolt Size N/A 7/8 |
| 03771017 | N/A AMI 3.2500 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 4.0000 in | Base Width N/A 4 in | Bolt Center-to-Center Length N/A 10.4375 to 11.8125 in | Bolt Size N/A 7/8 |
| 03773659 | N/A AMI 3.4375 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 4.0000 in | Base Width N/A 4 in | Bolt Center-to-Center Length N/A 10.4375 to 11.8125 in | Bolt Size N/A 7/8 |
| 03771086 | N/A AMI 2.3750 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 2.6875 in | Base Width N/A 2-3/4 in | Bolt Center-to-Center Length N/A 7.1250 to 8.1250 in | Bolt Size N/A 5/8 |
| 01510969 | N/A AMI 2.4375 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 2.6875 in | Base Width N/A 2-3/4 in | Bolt Center-to-Center Length N/A 7.1250 to 8.1250 in | Bolt Size N/A 5/8 |
| 03235828 | N/A AMI 2.5000 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 2.6875 in | Base Width N/A 2-3/4 in | Bolt Center-to-Center Length N/A 7.1250 to 8.1250 in | Bolt Size N/A 5/8 |
| 02608122 | N/A AMI 2.3750 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 2.7500 in | Base Width N/A 2-3/4 in | Bolt Center-to-Center Length N/A 6.8750 to 7.6250 in | Bolt Size N/A 5/8 |
| 01508955 | N/A AMI 2.4375 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 2.7500 in | Base Width N/A 2-3/4 in | Bolt Center-to-Center Length N/A 6.8750 to 7.6250 in | Bolt Size N/A 5/8 |
| 02867080 | N/A AMI 2.5000 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.0000 in | Base Width N/A 2-3/4 in | Bolt Center-to-Center Length N/A 7.5938 to 8.4063 in | Bolt Size N/A 3/4 |
| 01508956 | N/A AMI 2.6875 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.1250 in | Base Width N/A 2-13/16 in | Bolt Center-to-Center Length N/A 7.7813 to 8.7188 in | Bolt Size N/A 3/4 |
| 03556535 | N/A AMI 2.7500 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.1250 in | Base Width N/A 2-13/16 in | Bolt Center-to-Center Length N/A 7.7813 to 8.7188 in | Bolt Size N/A 3/4 |
| 02067507 | N/A AMI 2.9375 Inch (in) Bore Diameter Pillow Block Ball Bearing Unit | Base to Bore Centerline N/A 3.2500 in | Base Width N/A 2-15/16 in | Bolt Center-to-Center Length N/A 8.0313 to 8.9688 in | Bolt Size N/A 3/4 |
